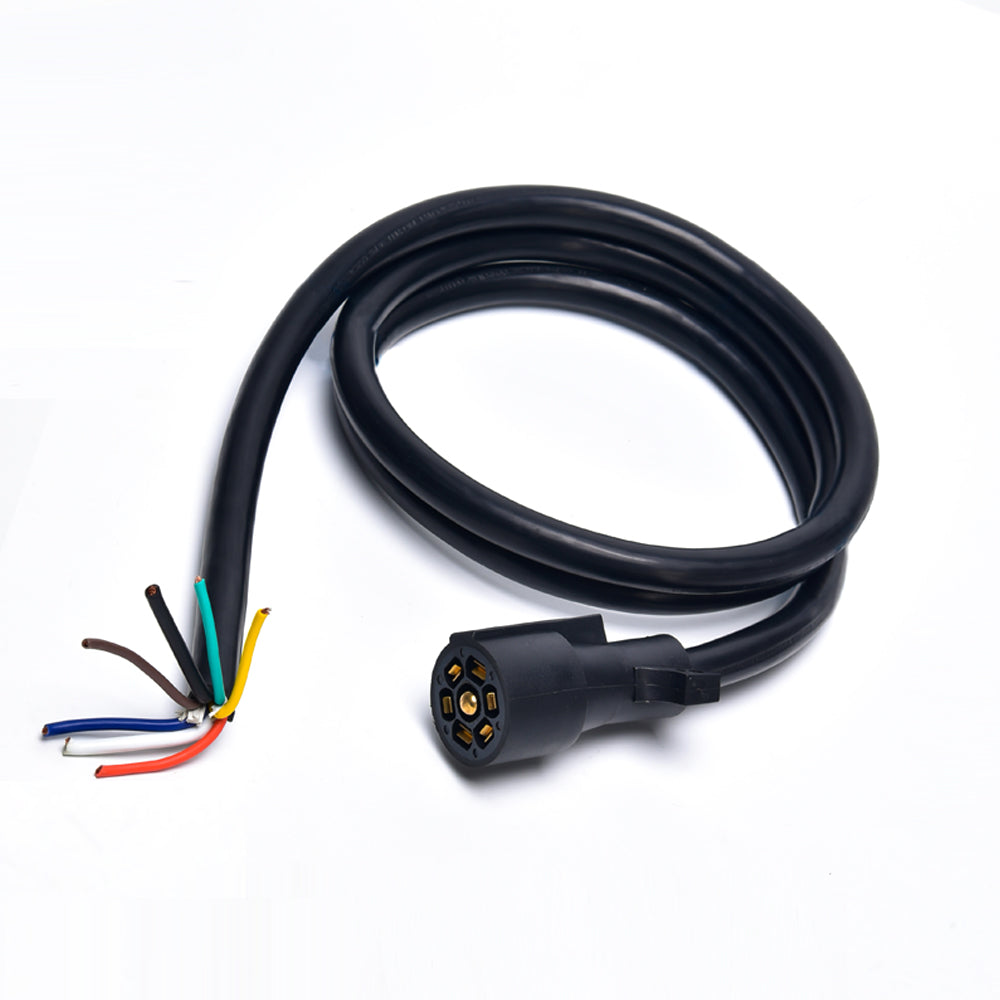

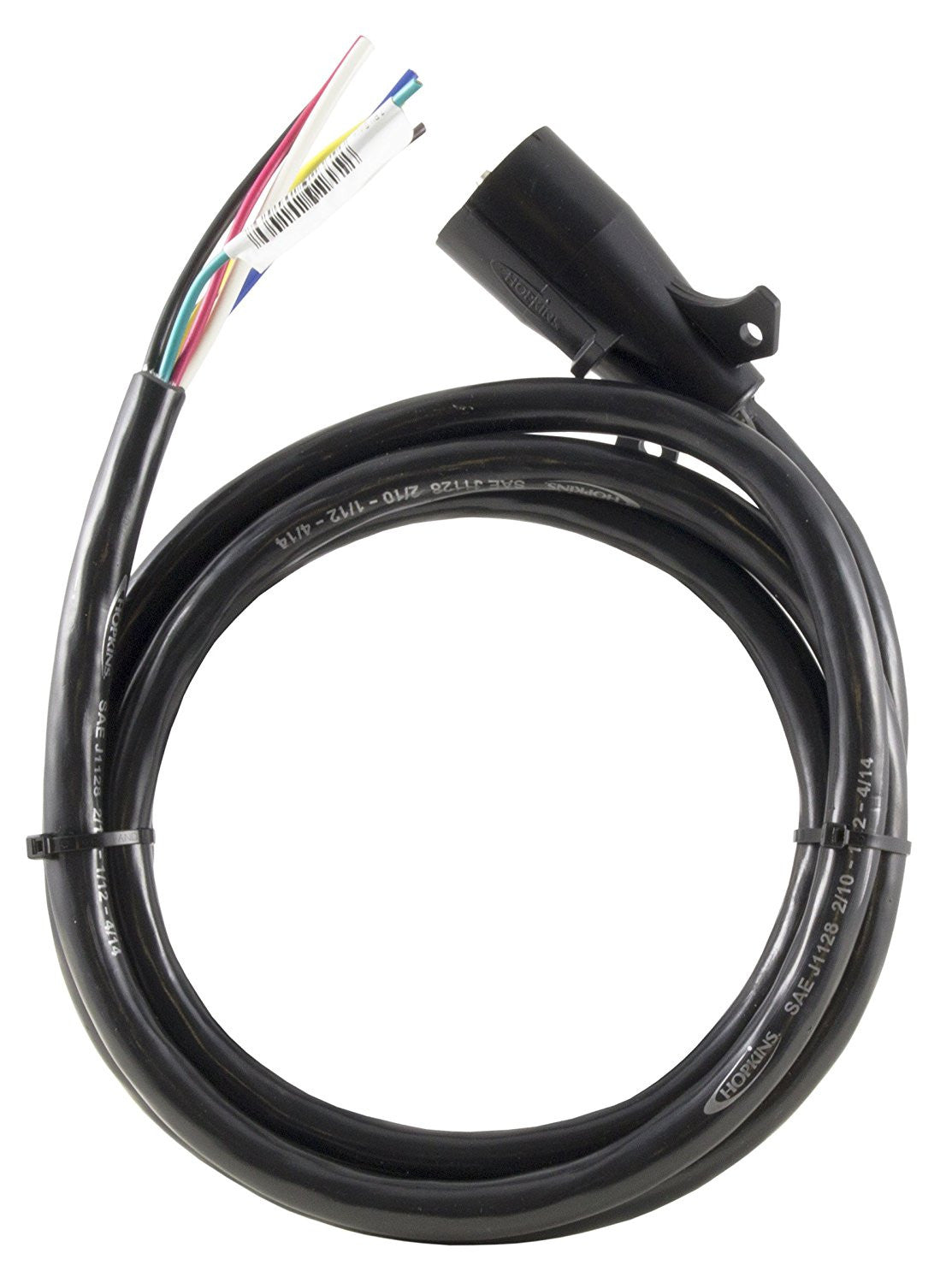

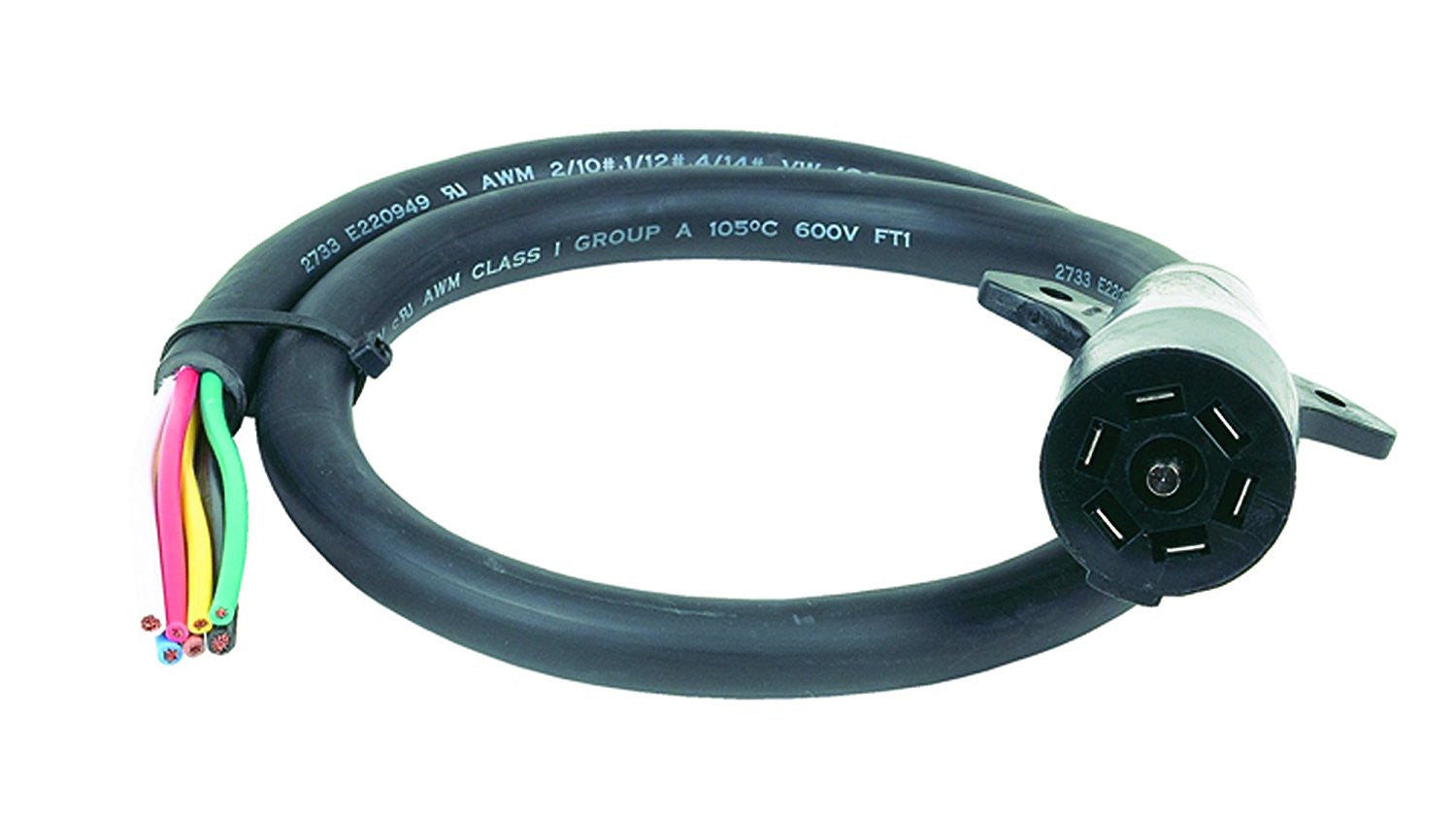

TREKPOWER 7 Way Trailer Wire

TREKPOWER 7 way trailer connector Specifications

• Length: 8 ft (length includes non-jacketed connector)
• Easy to connectto your trailer.
• Color-coded cablesmakes it is easy to identify each cables usage and install
• Wire to trailer quickly on power
• The wireincluding a water-resistant, plastic jacket 7-way flat-pin connector for trailer or truck side use.
• Heavy Duty 7 way plug wiring
• Usage: Travel Trailers, Fifth Wheel and trailers, Goose-neck Trailers, Boat Trailers, Large Utility

The TRKPOWER 7-way trailer cable offers the trailer for light, signals, light brakes, and the ground wire for the trailer. Moreover, they supply 3 additional PINS for a hot lead, electrical brakes, and reverse lights.

7 Ways Trailer cables could be one of the most important part of your trailer connector and light link. You may not an electricians, You will be confuse that how could do for so many wires?But connecting trailer wire is not hard and beyond you. Here are instructions for 7 way trailer-wiring process , hurry up,get your trailer power on and running in no time.

7 pin trailer wiring Standard Wire Instruction

Four 14 gauge wires

• Red wire 14 gauge - left brake cable lights
• Brown wire 14 gauge brown -right brake cable lights
• Green wire 14 gauge - running light
• Yellow wire 14 gauge - Reverse Lights

One 12 gauge wire

• Blue wire 12 gauge -  electric brakes

Two 10 gauge wires

• White wire 10 gauge - ground cable
• Black wire 10 gauge - battery hot lead
